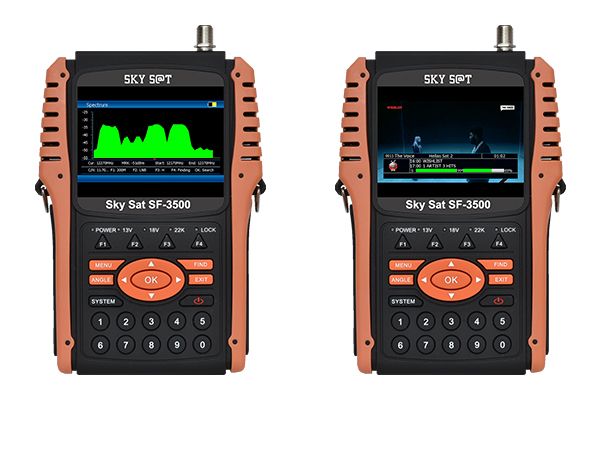

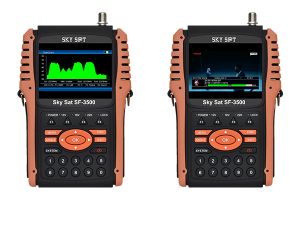

SAT FINDER- MEASURING DEVICE SKY SAT SF-3500
FACTORY SET INCLUDES:
1. Measuring device Sky Sat SF-3500- 1 Pcs.
2. Rubber protector- 1 Pcs.
3. Shoulder strap- 1 Pcs.
4. Power adaptor- 1 Pcs.
MAIN FUNCTIONS:
- Spectrum analyzer.
- Multi-purpose design.
- 3.5 inch high definition TFT LCD colorful screen.
- LCD backlight turns off automatically.
- Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant.
- MPEG- 2/MPEG- 4/H.264 decoding Video format and 1080P Full HD.
- Measurement type: POWER, QUALITY, BER, MER, C/N and NIT value.
- Search mode: auto, blind, manual and NIT.
- Auto calculate angle of AZ, EL.
- Built in flashlight.
- Multiple satellites/TPs scan, blind scan and NIT scan.
- Sound and light alarm when lock signal.
- Shows channel picture for SD and HD channels.
- Quick satellite signal finding.
- Quick satellite antenna installation.
- Global satellite data preset.
- Satellite parameters editable.
- Easy Satellite Manager (EDIT, delete and SCAN).
- Edit TP, Frequency, LNB switch, Symbol Rate etc.
- Completely programmable by the user.
- Upgrade S/W by USB.
- Easy to carry.
- Indicator lights for program lock.
- Indicator lights for charging.
- Indicator lights for 13/18 volts.
- Indicator lights for 0/22 KHz.
- USB port for software upgrades.
- Input frequency: 950~2150MHz.
- Input level: -65~-25dBm.
- Input Impedance: 75Ω.
- Support DISEQC 1.0, 1.1, 1.2 and 22khz tone.
- Easy operation DISEqC 1.2 and USALS.
- LNB power supply: 18/13V (Max 650mA).
- LNB short-circuit protection and warning.
- Speaker Integrated.
- High capacity LI-ION battery 7.4V/2800mA.
- Removable battery design.
- Max operating time: 4 hours.
- 10V/1A DC adapter.
SATELLITE INPUT/DEMODULATION:
- Connector type: F type.
- Input Frequency: 950MHz~2150MHz.
- Signal input level: -65dBm ~ -25dBm.
- Band switch control : 22KHz.
- LNB supply: 13V/18V, Max 650mA.
- Demodulation type: QPSK, 8 PSK, 16 APSK, 32 APSK.
- Symbol rate: 2.0~45 MS/s. (SCPC/MCPC).
LCD FEATURES:
- LCD type: 3.5 Inch HD TFT LCD colorful screen.
HDMI OUTPUT INTERFACE:
- Connector type: HDMI 1.4
AUDIO/VIDEO INPUT:
- Analog audio video input: mini jack.
AUDIO/VIDEO OUTPUT:
- Analog audio video output: mini jack.
DATA SERVICE PORT:
- Connector: USB.
- Data protocol: USB 2.0 interface.
- File management system: NTFS, FAT32, FAT16.
- File format: Wma, mp3, mp4, avi, jpg, jpeg, bmp, img.
POWER SUPPLY:
- Adapter input: 100~240 VAC, 50/60Hz.
- Adapter output: DC 10V/1A.
- Battery: High capacity LI-ION battery 7.4V/2800mA, can last around 4 hours.
PHYSICAL CHARACTERISTICS:
- Size (Length x width x height): 175 mm x 125 mm x 35 mm.
- Weight (net): 0.550 Kg.
- Weight (gross): 1.000 Kg.
