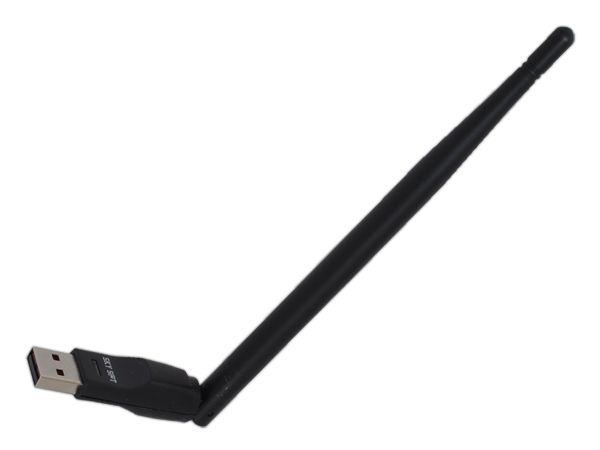

WIRELESS ADAPTER SKY SAT WA-RTL 8188EU MEGA 150 Mbps
INTRODUCTION:
SKY SAT WA-RTL 8188EU MEGA is a WLAN module supporting IEEE 802.11b/g/n standards with 4-pin connector supporting USB 2.0 interface. This is a low compact WLAN module designed in the product with embedded system for the wireless connectivity.
SCOPE:
SKY SAT WA-RTL 8188EU MEGA WLAN module is designed to operate in 2.4GHz ISM frequency band, it applies a highly integrated MAC/BBP and RF single chip RTL 8188 with 150Mbps PHY rate supporting. It fully complies with IEEE802.11n draft 3.0 and IEEE802.11b/g feature.
FEATURES:
- 802.11b: 1,2,5.5, 11Mbps.
- 802.11g: 6,9,12,18,24,36,48,54Mbps.
- 802.11n: (20MHz) MCS0-7, Support up to 72Mbps, (40MHz) MCS0-7, Support up to 150Mbps.
- OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.
- Security support for 64/128 WEP, WPA, WPA2, TKIP, AES.
- Operates in 2.4GHz frequency bands. Power Management.
- Antenna configuration: 2dBi undertachable antenna
- Standards: IEEE802.11b/g & 802.11n (1TiR mode).
- Operating Frequency: USA(FCC)- 2.412GHz~2.462GHz (channel 1-11) ISM band.
- Operating Frequency: Europe(CE)- 2.412GHz~2.472 (channel 1-13) ISM band.
- Protocols: 02.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM.
- Antenna: 2dBi undertachable antenna
- Security: WPA/WP2, 64/128/152-bit WEP, WPS.
- Transmit Output Power (Typical): 802.11b (CCK)11Mbps: 19+/-1dBm; 802.11g (OFDM) 54Mbps: 16+/-1dBm, 802.11n: (HT20@MCS7), 15+/-1dBm; 802.11n:(HT40@MCS7), 15+/-1dBm.
- Receiver Sensitivity(Typical): 802.11b: -86+/-1dBm; 802.11g:-74+/-1dBm, 802.11n: (HT20), -70+/-1dBm; 802.11n(HT40), 70+/-dBm.
- Operating Voltage: 5.0VDC±5%.
- Operating Current: <160mA at 5.0V DC input.
- Bus Interface: USB 2.0/USB1.1.
- USB Interface: USB 2.0.
- Antenna Impedance: 50 ohms.
OPERATION SYSTEM:
- Linux 2.4/2.6 (ARM, MIPSII).
- Windows 2000/XP/Vistsa/7 (X86 Platform).
- Mac OS X 10.3/10.4/10.5/10.6.
PHYSICAL SPECIFICATION:
- Size (H x W x D): 195 mm X 16 mm X 14 mm.
- Weight: 0.020 Kg.
- Operating Temp.: 0°C ~ +50°C.
- Storage Temp.: -20°C ~ +85°C.
- Warranty : 2 years.
